با سنسور دما IFM مدل TR2439 ساخت آمریکا، دقت و کیفیت را تجربه کنید! این سنسور با تکنولوژی پیشرفته، دقت بالا و عملکرد پایدار، مناسب برای صنایع مختلف است. نصب آسان و مقاومت در برابر شرایط محیطی، این محصول را به انتخابی ایدهآل برای نیازهای شما تبدیل کرده است. فرصت را از دست ندهید و همین حالا سفارش دهید!
محصولات مرتبط

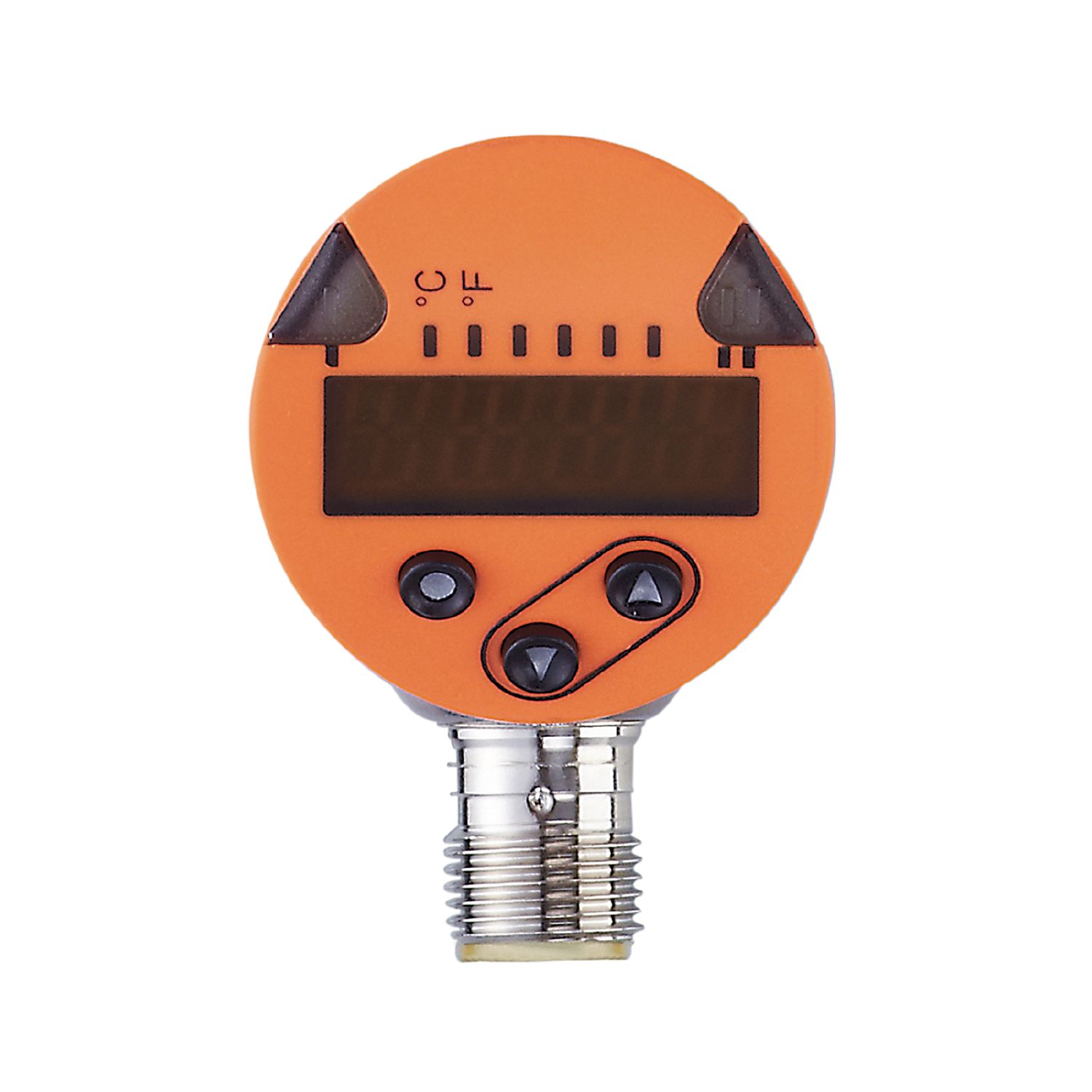

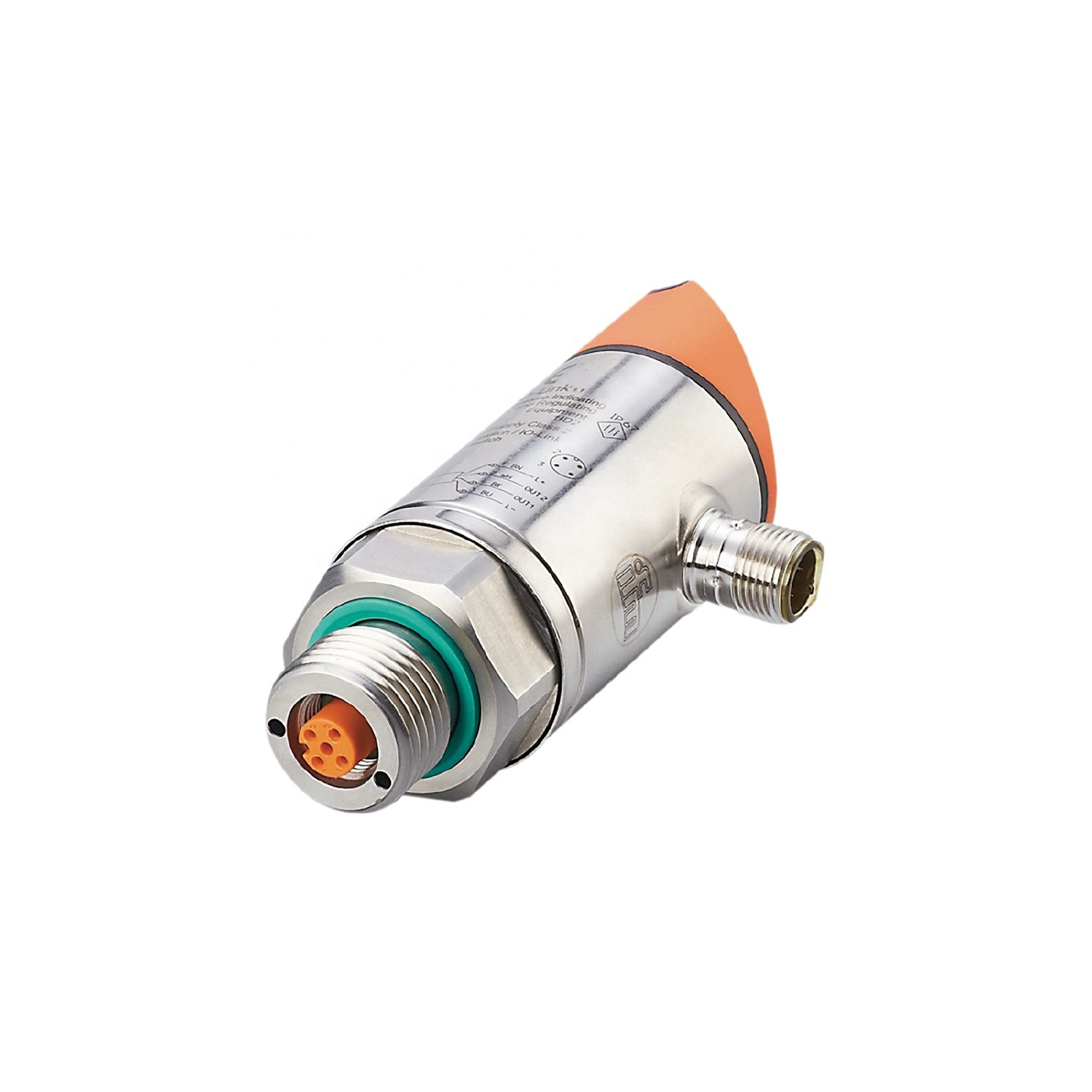

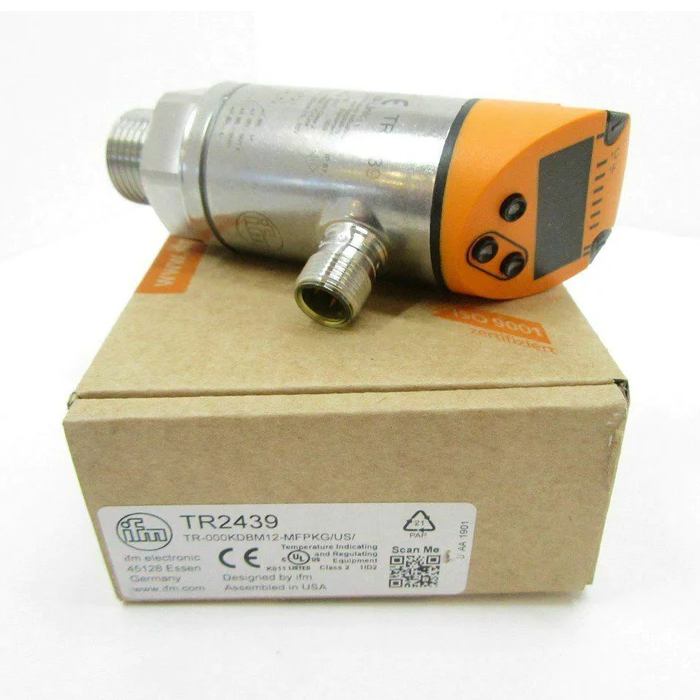

TR2439 TR-000KDBM12-MFPKG/US/
Number of inputs and outputs Number of digital outputs: 1; Number of analog outputs: 1
Measuring range
-100...600 °C -148...1112 °F
Communication interface IO-Link
Process connection threaded connection G 1/2 external thread
Application
System gold-plated contacts
Application for Pt100 and Pt1000 measuring elements
Electrical data
Operating voltage[V] 18...32 DC; (cULus - Class 2 source required)
Current consumption[mA] < 50
Protection class III
Reverse polarity protection yes
Power-on delay time[s] 1
Integrated watchdog yes
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 1; Number of analog outputs: 1
Outputs
Total number of outputs 2
Output signal switching signal; analog signal; IO-Link; (configurable)
Electrical design PNP/NPN
Number of digital outputs 1
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC[V] 2.5
Permanent current rating of switching output DC[mA] 250
Number of analog outputs 1
Analog current output[mA] 4...20
Max. load[Ω] 500
Analog voltage output[V] 0...10
Min. load resistance[Ω] 2000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Measuring/setting range
Measuring range
-100...600 °C -148...1112 °F
Factory setting -40...300 °C / -40...572 °F
Set point SP
-99.8...600 °C -147.6...1112 °F
Reset point rP
-100...599.8 °C -148...1111.6 °F
Analog start point
-100...595 °C -148...1103 °F
Analog end point
-95...600 °C -139...1112 °F
In steps of
0.1 °C 0.1 °F
Resolution
Resolution of switching output[K] 0.1
Resolution of analog output[K] current output: MS / 4096; voltage output: MS / 3561
Resolution of display[K] 0.1
Accuracy / deviations
Switch point accuracy[K] ± 0,3 + (± 0,1 % MS)
Precision analog output[K] ± 0,3 + (± 0,1 % MS)
Display accuracy[K] ± 0,3 + (± 0,1 % MS)
Temperature coefficient[% of the span / 10 K] 0,1; (In case of deviation from the reference condition 25 ± 5 °C)
Reaction times
Response time[ms] 390
Max. r
