واحدهای خنککننده دیواری Blue e با مصرف بهینه انرژی در ردههای خروجی ۳۰۰ تا ۴۰۰۰ وات و دارای تبخیرکننده کندانس الکتریکی داخلی (از ۱۰۰۰ وات). در قالبهای ویژه "افقی" و "تخت" موجود است.
محصولات مرتبط
K 3332.540 TopTherm wall-mounted cooling unit Blue e
eatures

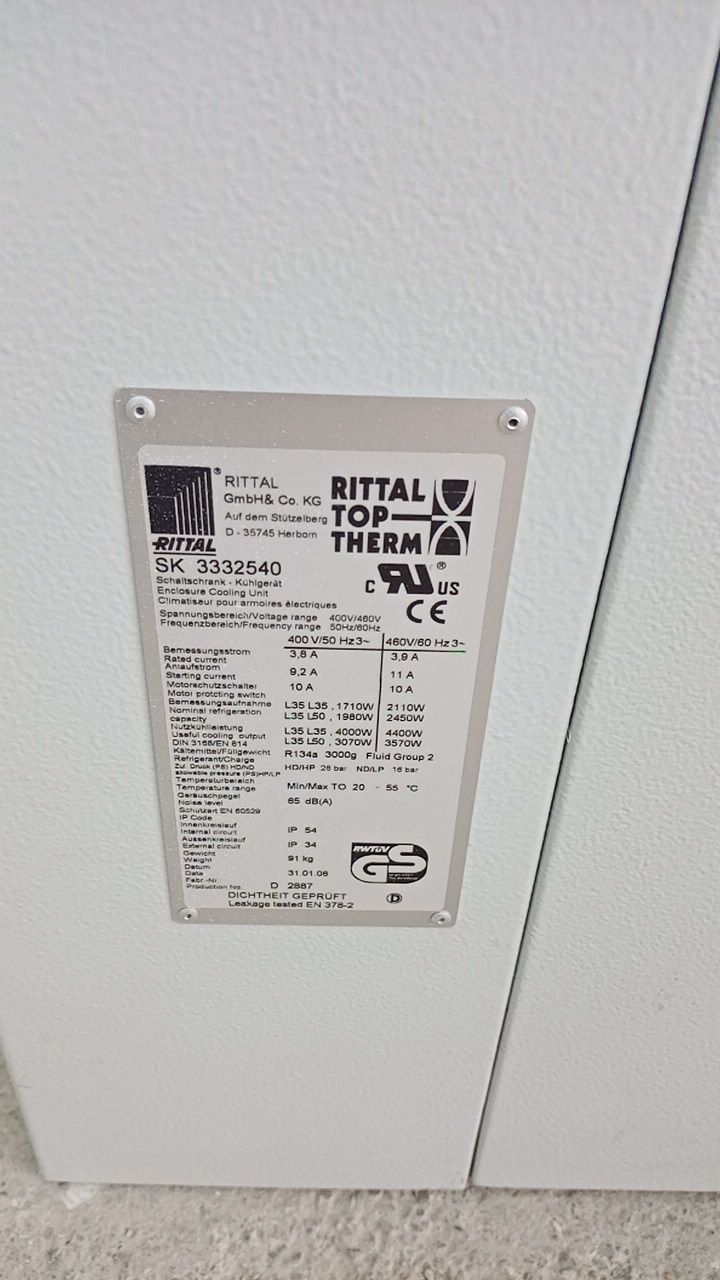

Model No. SK 3332.540
Design wall-mounted
Product description Energy-efficient Blue e wall-mounted cooling units in the output
categories 300 W to 4000 W and with integral electrical condensate
evaporator (from 1000 W).
Benefits May be linked to the IoT interface via Blue e IoT adaptor for cooling
units from 500 W cooling output with e-Comfort controller
Product modification The unit will be available with R134a refrigerant until 31 December
2026. From 1 January 2025, the unit will no longer meet the GWP
requirements for the US market. As an alternative, we recommend
the use of a Blue e+ cooling unit.
Material Sheet steel
Colour RAL 7035
Supply includes Condenser with hydrophobic RiNano coating
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Integral electric condensate evaporation
Total cooling output to
DIN EN 14511
Cooling output L35 L35/50 Hz: 3.95 kW
Cooling output L35 L35/60 Hz: 4.35 kW
Cooling output L35 L50/50 Hz: 3.02 kW
Cooling output L35 L50/60 Hz: 3.52 kW
Rated operating voltage 400 V, 3~, 50 Hz
460 V, 3~, 60 Hz
© Rittal 2025 2
Features
Rated current max. At 50 Hz: 4.2 A
At 60 Hz: 4.2 A
Start-up current max. At 50 Hz: 9.2 A
At 60 Hz: 11 A
Air throughput (unimpeded air
flow)
External circuit: 2,000 m³/h
Internal circuit: 1,500 m³/h
Energy efficiency ratio (EER) 50/60
Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 2.47
Refrigeration factor L35 L35 (EER) 60 Hz: 2.18
Design wall-mounted
Dimensions Width: 500 mm
Height: 1,580 mm
Depth: 340 mm
Protection category to IEC 60 529 External circuit IP 34
Internal circuit IP 54
Protection category NEMA UL Type 12
Refrigerant/cooling medium Refrigerant: R134a
Quantity: 2.995 kg
Global Warming Potential (GWP): 1,430
CO2 equivalent (CO2e): 4.28 t
Temperature control e-Comfort controller (factory setting +35 °C)
Operating temperature range 10 °C...55 °C
Storage temperature range -40 °C...70 °C
Setting range 20 °C...55 °C
Power consumption Pel Power consumption L35
